COND WITH QUERY

Introduction

The COND WITH QUERY “operator” is not actually an operator. It represents a flow of control node in the execution plan for a code unit (batch, stored procedure, trigger, or user-defined function) that consists of multiple statements and that depends on a query-based test. If the flow of control node uses a simple condition, then the COND “operator” is used instead. Unlike the COND “operator”, COND WITH QUERY is used in both the execution plan with run-time statistics (“actual execution plan”) and the execution plan only (“estimated execution plan”).

The COND WITH QUERY “operator” can be used for an IF … ELSE statement, for an IF statement without ELSE, and for a WHILE statement. In graphical execution plans, they all look the same. In the XML representation, the version for IF … ELSE looks different, but the versions for IF without ELSE and WHILE still look the same. I assume that the actual internal execution plan does have a property to distinguish these, but it seems that Microsoft failed to include it in the transformation to XML.

Visual appearance in execution plans

Depending on the tool being used, the COND WITH QUERY “operator” is displayed in a graphical execution plan as shown below:

SSMS and VS Code (recent versions)	Legacy SSMS (17.3 and older)	Plan Explorer	Paste The Plan
			(no icon)

Algorithm

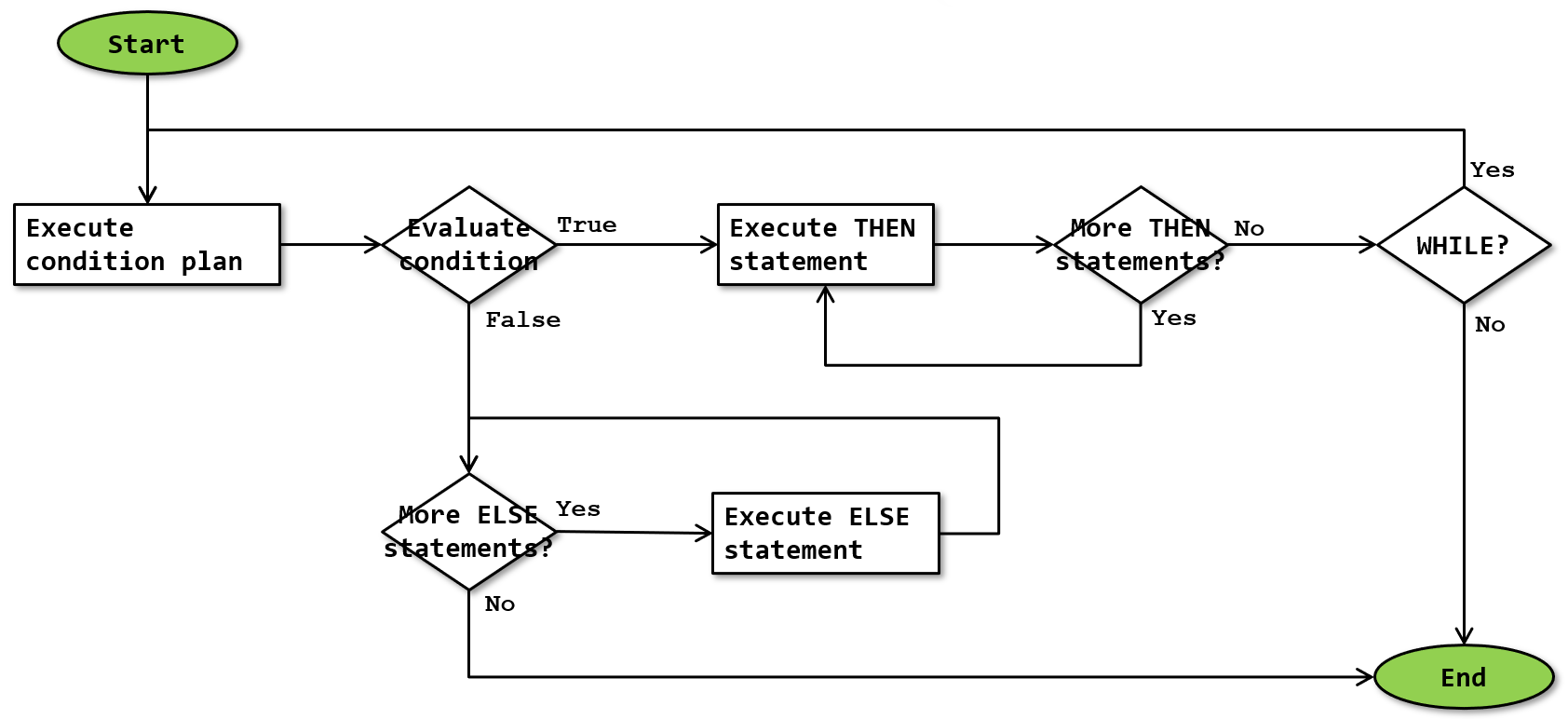

The basic algorithm for the COND WITH QUERY “operator” is as shown below:

Note that I have combined the execution logic for IF … ELSE, IF without ELSE, and WHILE all in this single flowchart. It is possible that the actual implementation uses two simpler separate algorithms for WHILE and for IF, or even three algorithms for each of the three cases.

The flowchart suggests that a single COND WITH QUERY “operator” can combine WHILE and ELSE processing. That is not the case. The two options are mutually exclusive.

Execute condition plan and Evaluate condition

The first subnode of a COND WITH QUERY “operator” is always a <Condition> node that has a <QueryPlan> subnode. This contains the execution plan that has to be executed in order to evaluate the condition. In the graphical interface, the <Condition> subnode is not visible, but the corresponding execution plan is always the first child node of the COND WITH QUERY “operator”.

The execution plan in the <Condition> node always returns 1 if the condition is True, or 0 if the condition is False or Unknown.

Execute THEN statement and More THEN statements?

Any COND WITH QUERY “operator” always has a <Then> subnode in the execution plan XML. This subnode then has a <Statements> subnode, that contains one or more <StmtSimple> subnodes. If <QueryPlan> in the <Condition> sub-node returns 1, then all these statements are executed sequentially.

In the graphical representation of the execution plan, the <Then> and <Statements> nodes are not represented. Each of the <StmtSimple> subnodes with their child tree is represented as a direct child of the COND WITH QUERY “operator”.

WHILE?

If the COND WITH QUERY “operator” is used for a WHILE statement, then execution returns to Execute condition plan after all statements in the <Then> subnode have been executed. Execution repeats if this execution plan returns 1, or stops otherwise.

If the COND WITH QUERY “operator” is used for an IF statement, then execution always ends after a single execution of either the <Then> subnode or the <Else> subnode.

The difference between an IF without ELSE and a WHILE is not visible in the graphical execution plan, nor in the execution plan XML, except by looking at the (potentially truncated) text in the Statement property. I assume that the internal execution plan does represent this, but Microsoft failed to include it in the XML representation.

More ELSE statements and Execute ELSE statement

A COND WITH QUERY “operator” for an IF … ELSE has an <Else> subnode in the execution plan XML. This subnode then has a <Statements> subnode, that contains one or more <StmtSimple> subnodes. If the condition evaluates to False or Unknown, then all these statements are executed sequentially.

A COND WITH QUERY “operator” for an IF without ELSE or for a WHILE does not have an <Else> subnode. The “More ELSE statements” test fails instantly and nothing is executed.

In the graphical representation of the execution plan, the <Else> and <Statements> nodes are not represented. Each of the <StmtSimple> subnodes with their child tree is represented as a direct child of the COND WITH QUERY “operator”.

Confusing representation

The XML representation of the execution plan uses a <Then> subnode to encapsulate the statement(s) that are conditionally executed if or while the condition is True, and an optional <Else> subnode to encapsulate the statement(s) to be executed when the condition is False or Unknown. In the graphical representation, the <Then> and <Else> subnodes are not shown. The plan simply shows each statement in the <Then> subnode as a direct child of the COND WITH QUERY “operator”, followed by each statement in the <Else> subnode.

As a result, a graphical execution plan that shows a COND WITH QUERY “operator” with five child subtrees can mean any of the following:

A WHILE loop that executes the condition query and then repeats all four statements as long as the condition is True.
An IF without ELSE that executes the condition query and then executes all four statements when the condition is True.
An IF … ELSE that executes the condition query and then executes the first three statements when the condition is True, or the last one when the condition is False or Unknown.
An IF … ELSE that executes the condition query and then executes the first two statements when the condition is True, or the last two when the condition is False or Unknown.
An IF … ELSE that executes the condition query and then executes the first statement when the condition is True, or the last three when the condition is False or Unknown.

If you look at the execution plan XML, then options 1 and 2 still look identical, but the others can all be distinguished from each other by looking at which statement(s) are encapsulated in the <Then> subnode, and which are in the <Else> subnode.

Operator properties

COND WITH QUERY is not an actual operator, but a control of flow node in the execution plan. As such, it has some of the properties that apply to the execution plan as a whole, which can be found here. In addition, it has the properties listed below. Some of these are not shown as properties in the graphical execution plan, but as nodes in the execution plan XML.

Properties that are included on the Plan properties page but are also included below for their specific meaning for the COND WITH QUERY operator are marked with a *.

Property name	Description
Condition	This subnode is not explicitly exposed in the graphical execution plan, but the <QueryPlan> subnode it contains is shown as the first child subtree of the COND WITH QUERY. In the XML representation, the <QueryPlan> is shown as the child of a <Condition> node. For the COND WITH QUERY “operator”, the <Condition> subplan returns 1 if the condition evaluates to True, or 0 if it evaluates to False or Unknown.
Else	This subnode encapsulates all the <StmtSimple> subtrees to be executed if the <Condition> subplan returns 0. This property is optional. The <Else> property is not shown in the graphical representation of the execution plan. If it exists in the execution plan XML, then its descendant <StmtSimple> subtrees are shown as direct descendants of COND WITH QUERY.
Estimated Number of Rows for All Executions *	The Estimated Number of Rows for All Executions property is always zero for the COND WITH QUERY “operator”. Each of its subtrees has its own Estimated Number of Rows for All Executions, but they are not aggregated in the COND WITH QUERY “operator”.
Estimated Number of Rows per Execution *	The Estimated Number of Rows per Execution property for the COND WITH QUERY “operator” is always equal to the Estimated Number of Rows per Execution of its first subtree, the <Condition> query, which is always 1. Each of the other subtrees has its own Estimated Number of Rows per Execution, but they are not aggregated in the COND WITH QUERY “operator”.
Estimated Operator Cost *	The Estimated Operator Cost property is always zero for the COND WITH QUERY “operator”.
Estimated Subtree Cost *	The Estimated Subtree Cost property of a COND WITH QUERY “operator” shows the Estimated Subtree Cost of its first subtree, the <Condition> subquery. Each of its other subtrees has its own Estimated Subtree Cost, but they are not aggregated in the COND WITH QUERY “operator”.
Statement *	In cases where it is unclear whether a COND WITH QUERY “operator” is used for an IF without ELSE or for a WHILE, looking at the Statement property might sometimes help. However, if the statement is preceded by a long comment, then the text of the Statement property might be truncated before the IF or WHILE keyword.
StmtSimple	This is a subnode of either the <Then> or of the <Else> subnode. It occurs one or more times in the <Then> property, and one or more times in the <Else> subnode if one is present. It encapsulates the execution plan for one of the statements to be executed when or while the <Condition> subplan returns 1 if it is a subnode of <Then>; or one of the statements to be executed when the <Condition> subplan returns 0 if it is a subnode of <Else>.
Then	This subnode encapsulates all the <StmtSimple> subtrees to be executed if or while the <Condition> subplan returns 1. This property is mandatory. The <Then> subnode is not shown in the graphical representation of the execution plan. Its descendant <StmtSimple> subtrees are shown as direct descendants of COND WITH QUERY.

Change log

(Does not include minor changes, such as adding, removing, or changing hyperlinks, correcting typos, and rephrasing for clarity).

August 24, 2026: Added.
